RS422 Digital Readout 2 Axis

Name: RS422 Digital Readout 2 Axis
Brand: SINO
Price: 1 USD

China RS422 Digital Readout 2 Axis wholesale

Brand Name : SINO

Model Number : SDS6-2V, KA-300, KA-500

Certification : CE,RoHS

Place of Origin : Guangzhou, CHINA

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 3000 sets per month

Delivery Time : 5-8 days

Packaging Details : Carton

Item name : 2 axis metal lathe machine DRO kit

Usage : lathe machine positioning

System : 2 axis DRO SDS6-2V

Scale model : KA-300, KA-500

Signal : TTL / RS422

Resolution : 0.005mm/0.001mm

DRO mounting : electric box

Meas. travel : 70-1020mm

Display : LED

Voltage : 100V - 240V

Contact Now

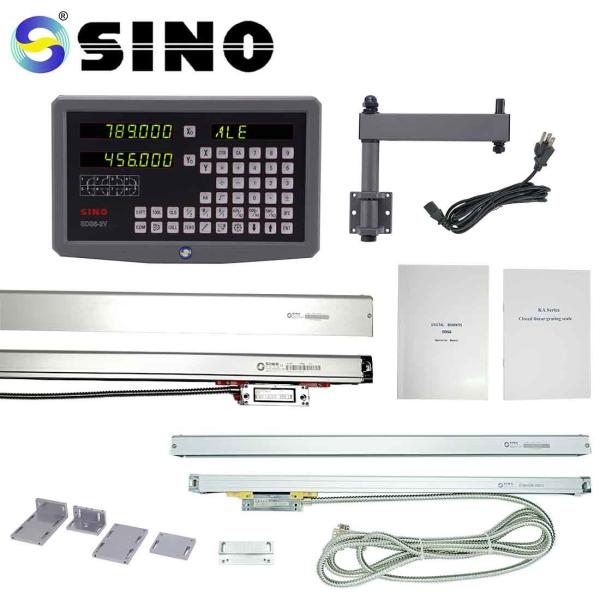

SINO 2 axis metal lathe machine DRO kit SDS6-2V mounting on electric box with two linear scales

The package is special for 2 axis lathe machine positioning.

The DRO should be mounting on the lathe's electirc box.

The KA-300 scale should be for axis Z, and KA-500 scale should be for axis X.

Package list:

Item name	2 axis metal LED lathe machine DRO kit
Digital Readout (DRO)	SDS6-2V
Linear scale for axis Z	KA-300 720-1020mm
Linear scale for axis X	KA-500 270-520mm
Rack for DRO	Rack for lathe
Protection cover for Z scale	Type D
Protection cover for X scale	Type H
Bracket for scales	T-bracket (1set) / KA-500 bracket (1pc)
Others	Cable / Screws / Manual

Functions for lathe machine:

Radius / Diameter Conversion
Tool Diameter Compensation
Taper Measurement
200 Tools Storeroom

Detail Information:

RS422 Digital Readout 2 Axis

Pin Description:

RS422 Digital Readout 2 Axis

All linear scales were tested before delivery. Here is a sample of a scale's test report.

RS422 Digital Readout 2 Axis

It's a sample that a DRO is mounting on the electric box of a lathe:

It's a sample that KA-500 linear encoder on axis X of lathe:

It's a sample that KA-300 linear encoder on axis Z of lathe:

RS422 Digital Readout 2 Axis
