SINO SDS2-3MS Lathe Milling Machine with DRO Digital Readout SDS3MS Display
SINO SDS2-3MS Lathe Milling Machine DRO Digital Readout With Three Coordinate Numerical Display
The SDS2-3MS SINO Lathe Milling Machine DRO Digital Readout with SDS3MS Display is a digital readout system specifically built for lathe and milling machines. It delivers accurate and real-time measurement feedback, allowing operators to precisely monitor and manage the machining process.
Features:
SDS3MS Display:The SDS3MS digital readout system features a clear and user-friendly interface designed for monitoring machine measurements. Equipped with function buttons and a keypad, it ensures convenient operation.
Multiple Axes Capability:The SDS2-3MS DRO system supports multiple axes, facilitating measurement feedback and control across various machine movements. This versatility enables precise positioning and accurate machining on multiple axes simultaneously.
Compatibility with Lathes and Milling Machines:Ideal for both lathe and milling machines, the DRO system is versatile and integrates seamlessly with different types of equipment. It can be easily incorporated into machine control systems for efficient operation.
High Precision:With its high-accuracy measurement readings, the digital readout system ensures precise control of machine movements, allowing machinists to achieve tight tolerances in machining operations. This accuracy is essential for achieving optimal machining results.
Incremental and Absolute Measurement Modes:The SDS2-3MS DRO system supports both incremental and absolute measurement modes, offering flexibility for various machining scenarios. Operators can switch between modes as needed to suit specific requirements.
Functionality:
The SDS2-3MS SINO Lathe Milling Machine DRO Digital Readout system enables precise monitoring and control of machine movements during lathe and milling operations. It offers real-time measurement feedback, empowering operators to make necessary adjustments and corrections for achieving precise machining results.
Usage:
The DRO system is widely utilized in machining operations that demand precise measurement and control, spanning turning, milling, drilling, and boring processes. Its applications extend across diverse industries such as metalworking, woodworking, automotive, and aerospace.
Lathe Operations: Ideal for tasks like facing, turning, tapering, threading, and grooving on lathes. It enables precise measurement and control of tool movements, ensuring accuracy in machining outcomes.
Milling Operations: Well-suited for milling tasks including contouring, slotting, drilling, and profiling. The system facilitates exact measurement and control of cutter movements, enabling operators to achieve consistent and precise milling results.
SDS3MS DRO: This multipurpose gauge features a 3-coordinate numerical display, offering versatility across various machine tools. It can be easily configured by adjusting parameters to suit different machining requirements.
SINO SDS3MS digital readout parameters
- Voltage Range: AC 85V to 250V, 50Hz to 60Hz
- Power Consumption: 15W / 25VA
- Coordinate Options: Single axis (A), two axes (XY), three axes (XYZ)
- Display: 7-segment LED display for signed numeric data; 8 meters display symbols
- Weight: 2 kg
- Input Signals: TTL, EIA-422, open collector output signal; compatible with programmable controllers
- Input Signal Frequency: > 100 kHz
- Resolution Options: 10 microns, 5 microns, 2 microns, 1 micron, 0.5 microns
Basic Functions
Converting millimeters to inches Absolute/relative Transformation
Mid-split Function. A simple and smooth "R" function. Function Divide the perimeter of a circle.
Save 200 workpiece zero points. Divide holes along an oblique line.
Mathematics calculation Tool Diameter Compensation
Bevel Process Zero location autorest
Packaging List :
| 1 PC | 3 Axis digital readout SDS3MS |
| 1 PC | Transparent cover |
| 1 PC | Instruction Manual (English) |
| 1 PC | Cable |

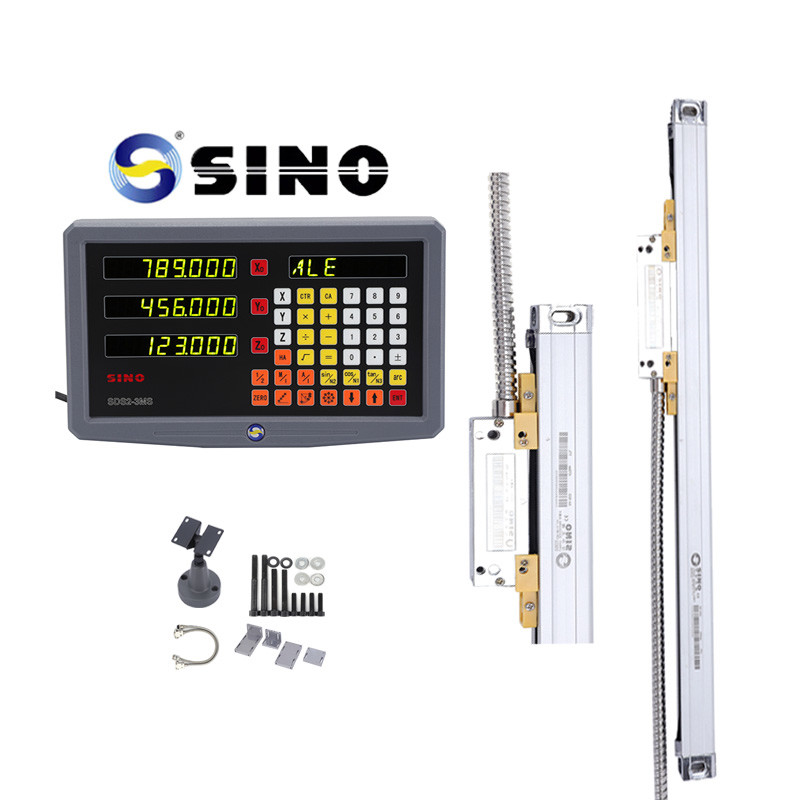

Product image /photos:
The rack in the picture is optioned, not standard product.
