SINO SDS6-3V 3 Axes Digital Readout Metal LED With Linear Encoder For Milling Machine DRO System

Name: SINO SDS63V 3 Axes Digital Readout Metal LED With Linear Encoder For Milling Machine DRO System
Brand: SINO
Price: 1 USD

China SINO SDS6-3V 3 Axes Digital Readout Metal LED With Linear Encoder For Milling Machine DRO System wholesale

Brand Name : SINO

Model Number : SDS6-3VF, KA-300

Certification : CE,RoHS

Place of Origin : Guangzhou, CHINA

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 3000 sets per month

Delivery Time : 5-8 days

Packaging Details : Carton

Item name : SINO SDS6-3V 3 Axes Digital Readout

Usage : RS232-C Output

System : LED DRO SDS6-3VF

Scale model : KA-300, KA-500

Signal : TTL / EIA-422-A

Resolution : 0.005mm/0.001mm

Voltage : AC 100V-240V

Meas. travel : 70-1020mm

Contact Now

SINO SDS6-3V 3 Axes Digital Readout Metal LED with linear encoder for Milling Machine DRO System

The DRO SDS6-3VF features an RS232-C interface for connecting to a PC or other systems.

This package is specifically designed to meet the requirements of a 3-axis milling machine, with the Z-axis tailored for the positioning of the milling head.

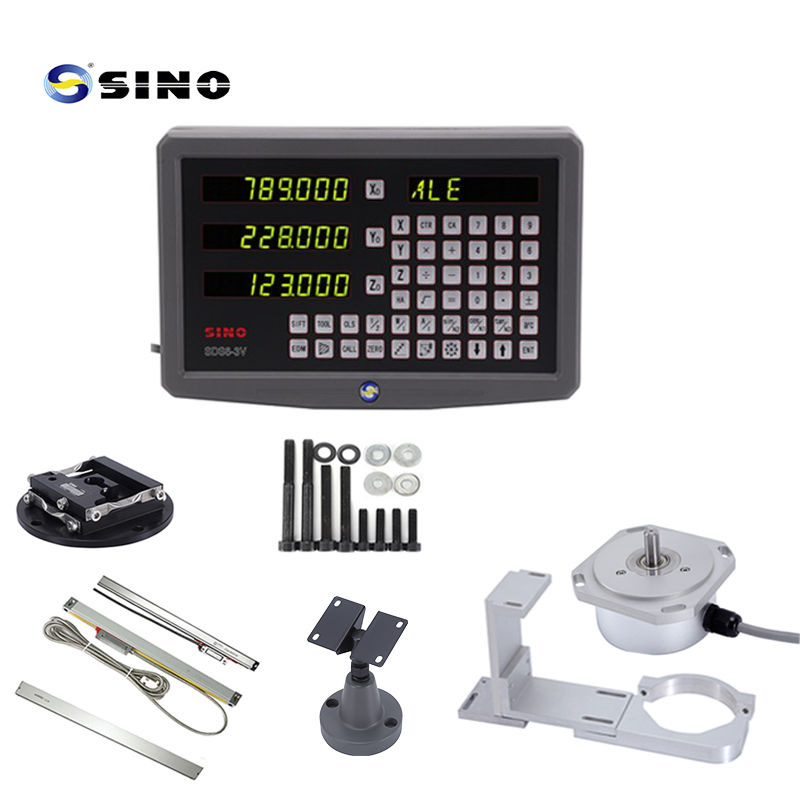

Included is a 3-axis display DRO SDS6-3VF, which comes with two standard linear encoders (KA-300) and one mini encoder (KA-500).

Package list:

Item name	RS232-C output DRO milling head kit
Digital Readout (DRO)	SDS6-3VF
Linear scale for axis X	KA-300: 670-1020mm
Linear scale for axis Y	KA-300: 370-570mm
Linear scale for axis Z	KA-500: 170mm
Rack for DRO	L400
Protection cover for X scale	Type C
Protection cover for Y scale	Type D
Accessory for Z Milling head	KA-500 milling head accessory (1 set)
Bracket for scales	T-bracket (1 set)
Others	Cable / Screws / Manual

Functions for milling machine:

Mid-split
Smooth "R" Curve
Simple "R" Curve
Oblique Line Hole Positioning
PCD Circle Equal Distribution
Bevel Cutting
Progressive Machining of Rectangular Inner Chambers

Detail Information:

SINO SDS6-3V 3 Axes Digital Readout Metal LED With Linear Encoder For Milling Machine DRO System

Pin Description:

SINO SDS6-3V 3 Axes Digital Readout Metal LED With Linear Encoder For Milling Machine DRO System

All linear scales were tested before delivery. Here is a sample of a scale's test report.

SINO SDS6-3V 3 Axes Digital Readout Metal LED With Linear Encoder For Milling Machine DRO System
