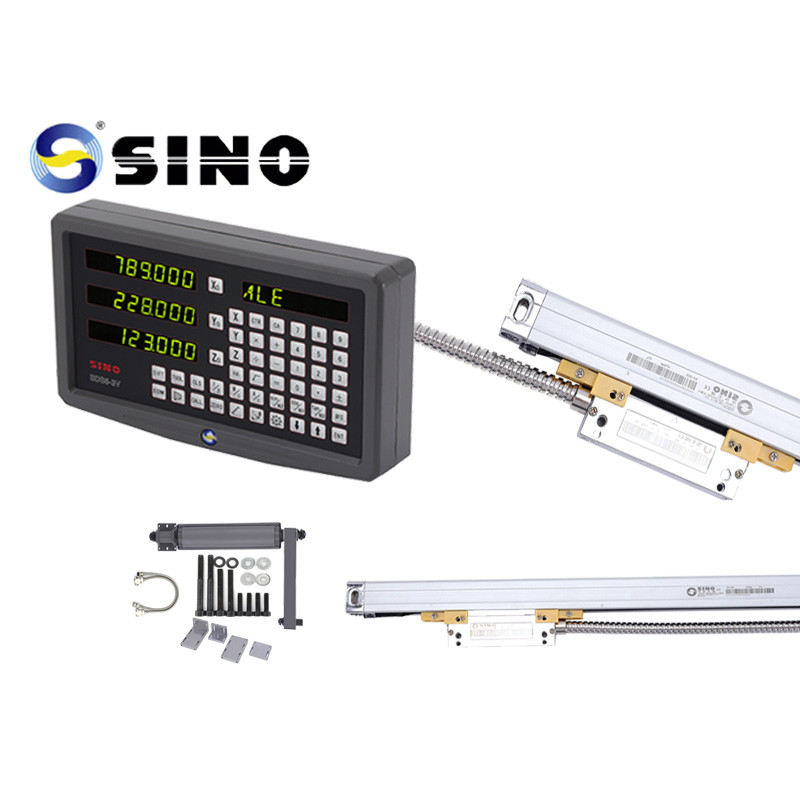

3 Axis DRO Kit SINO SDS6-3V Digital Readout System With Linear Scale TTL Signal Output For Lathe Machine

Name: 3 Axis DRO Kit SINO SDS63V Digital Readout System With Linear Scale TTL Signal Output For Lathe Machine
Brand: SINO
Price: 1 USD

China 3 Axis DRO Kit SINO SDS6-3V Digital Readout System With Linear Scale TTL Signal Output For Lathe Machine wholesale

Brand Name : SINO

Model Number : SDS2-3VA, KA-300*2

Certification : CE,RoHS

Place of Origin : Guangzhou, CHINA

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 3000 sets per month

Delivery Time : 5-8 days

Packaging Details : Carton

Item name : 3 Axis DRO Kit SINO SDS6-3V

Usage : For Lathe Machine

System : DRO

Scale model : KA-300

Signal : TTL / EIA-422-A

Resolution : 0.005mm/0.001mm/0.0005mm

Voltage : AC 100V-240V / KA-300: 5V

Meas. travel : 70-1020mm

Contact Now

3 Axis DRO Kit SINO SDS6-3V Digital Readout System With Linear Scale TTL Signal Output For Lathe Machine

The DRO system is specifically tailored for 2-axis mills.

It features a TFT display DRO system, the SDS2-3VA, and comes with two standard grating rulers, the KA-300.

Package list:

Item name	2 axes TFT milling machine DRO system
Digital Readout (DRO)	SDS2-3VA
Linear scale for axis X	670-1020mm
Linear scale for axis Y	370-570mm
Rack for DRO	L400
Protection cover for X scale	Type C
Protection cover for Y scale	Type D
Bracket for scales	T-bracket (1 set)
Others	Cable / Screws / Manual

Functions for milling machine:

Midsplit: Symmetrical division or balancing of parts.
Simple “R”: Basic radius or rounded edge calculation.
Oblique Line Hole Positioning: Accurate placement of holes along angled lines.
PCD Circle Equally Dividing: Evenly spacing points around a circle based on Pitch Circle Diameter.
Bevel Processing: Machining or finishing angled edges or surfaces.

Detail Information:

3 Axis DRO Kit SINO SDS6-3V Digital Readout System With Linear Scale TTL Signal Output For Lathe Machine

Pin Description:

3 Axis DRO Kit SINO SDS6-3V Digital Readout System With Linear Scale TTL Signal Output For Lathe Machine

All linear scales were tested before delivery. Here is a sample of a scale's test report.

3 Axis DRO Kit SINO SDS6-3V Digital Readout System With Linear Scale TTL Signal Output For Lathe Machine
