Multifunctional Linear Scale DRO System With 1µm Resolution LCD And 2 Axis DRO

Name: Multifunctional Linear Scale DRO System With 1µm Resolution LCD And 2 Axis DRO
Brand: SINO
Price: 1 USD

China Multifunctional Linear Scale DRO System With 1µm Resolution LCD And 2 Axis DRO wholesale

Brand Name : SINO

Model Number : SDS2-3VA, KA-300

Certification : CE,RoHS

Place of Origin : Guangzhou, CHINA

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 3000 sets per month

Delivery Time : 5-8 days

Packaging Details : Carton

Item name : Cost-effective TFT LCD Grinding Machine DRO Set

Usage : Grinding Machine

System : DRO System SDS2-3VA

Scale model : KA-300

Signal : TTL / RS422 / EIA-422-A

Resolution : 1µm / 5µm / 0.5μm

Voltage : AC 100V-240V

Meas. travel : 70-1020mm

Contact Now

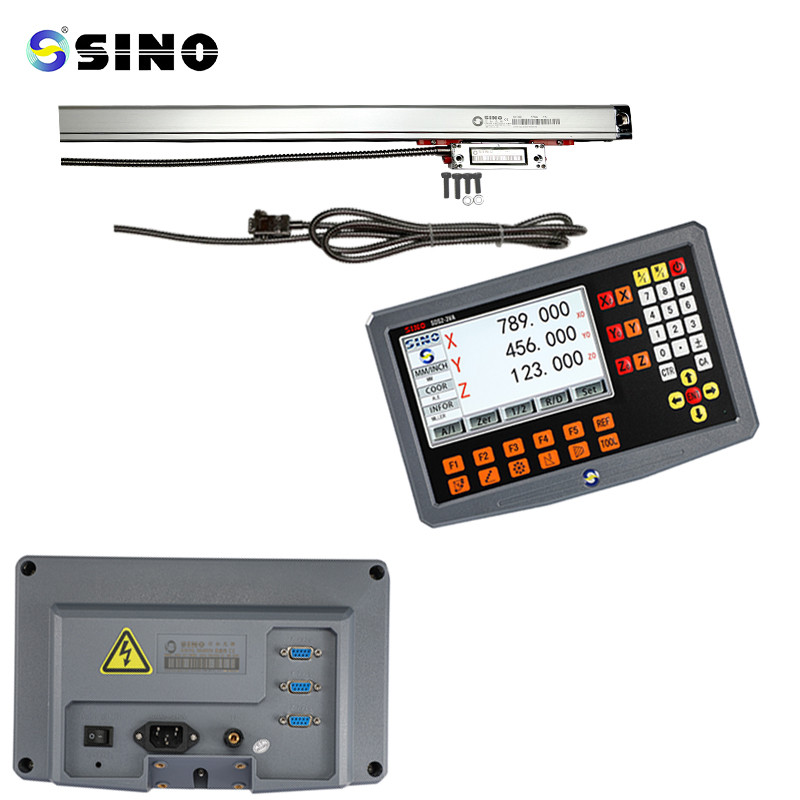

SINO 2 Axis Economy TFT LCD Grinding Machine DRO Kit SDS2-3VA with Two 0.001mm Linear Scales

The package is unique for the needs of a two-axis grinding machine.

A single economy DRO SDS2-3VA, a three-axis TFT LCD display, has two conventional linear scales (KA-300).

For a grinding machine, the resolution should typically be 0.001mm.

Additionally, the 0.001mm scales have yellow lips that improve accuracy by moving more smoothly.

Package list:

Item name	Low-cost TFT Grinding Machine DRO assembly
Digital Readout (DRO)	SDS2-3VA
Linear scale for axis X	KA-300: 70-1020mm
Linear scale for axis Y	KA-300: 70-1020mm
Rack for DRO	L400
Protection cover for X scale	Type D
Protection cover for Y scale	Type D
Bracket for scales	T-bracket (1 set)
Others	Cable / Screws / Manual
Bracket for Grinding	1 set (optioned, not standard)

Functions for grinding machine:

Digital Filter Function

Bracket for Grinding:

Multifunctional Linear Scale DRO System With 1µm Resolution LCD And 2 Axis DRO

Special for the cylinder type grinding header, so that's not standard accessory.

Detail Information:

Multifunctional Linear Scale DRO System With 1µm Resolution LCD And 2 Axis DRO

Pin Description:

Multifunctional Linear Scale DRO System With 1µm Resolution LCD And 2 Axis DRO

All linear scales were tested before delivery. Here is a sample of a scale's test report.

Multifunctional Linear Scale DRO System With 1µm Resolution LCD And 2 Axis DRO
