Lathe Machine Three-Axis DRO Kit SINO SDS6-3V Digital Readout System With Linear Scale TTL Signal Output

Name: Lathe Machine ThreeAxis DRO Kit SINO SDS63V Digital Readout System With Linear Scale TTL Signal Output
Brand: SINO
Price: 1 USD

China Lathe Machine Three-Axis DRO Kit SINO SDS6-3V Digital Readout System With Linear Scale TTL Signal Output wholesale

Brand Name : SINO

Model Number : SDS2-3VA, KA-300*2

Certification : CE,RoHS

Place of Origin : Guangzhou, CHINA

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 3000 sets per month

Delivery Time : 5-8 days

Packaging Details : Carton

Item name : 3 Axis DRO Kit SINO SDS6-3V

Usage : For Lathe Machine Milling machine

System : DRO System SDS6-3va

Scale model : KA-300, KA-500 KA-600

Signal : TTL / EIA-422-A

Resolution : 0.005mm/0.001mm/0.0005mm

Voltage : AC 100V-240V / KA-300: 5V

Meas. travel : 70-3000mm

Storage Temperature : 0-60℃

Communication Interface : RS232

Number Of Display : 2 / 3 / 4 axis

Screen : LCD

Contact Now

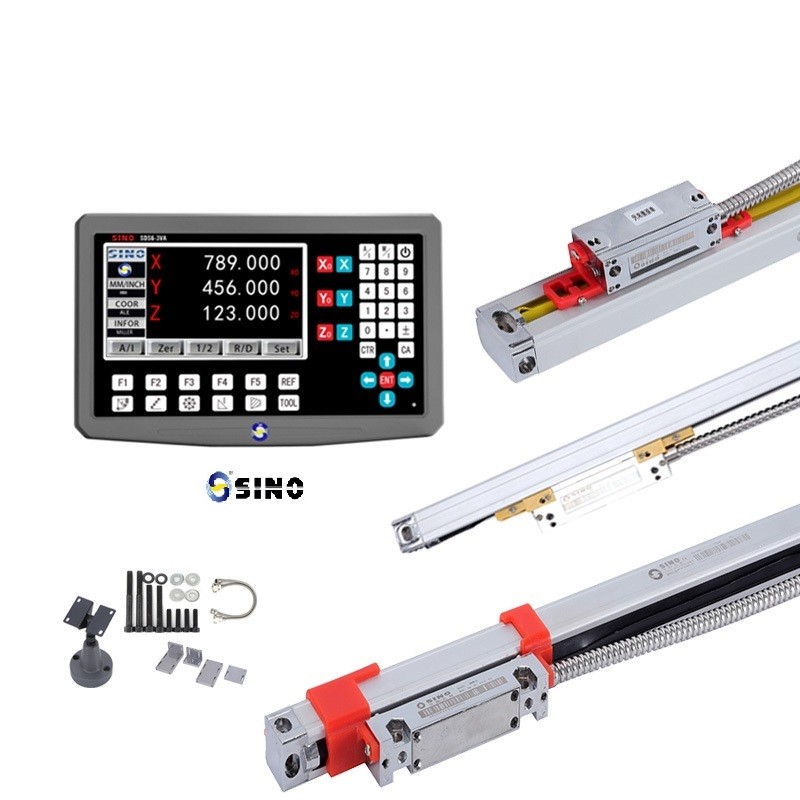

3 Axis DRO Kit SINO SDS6-3V Digital Readout System With Linear Scale TTL Signal Output For Lathe Machine

The DRO system is designed with 2-axis mills in mind.

It includes two conventional grating rulers (KA-300) and a TFT display DRO system (SDS6-3VA).

Package list:

Item name	3axes TFT milling machine DRO system
Digital Readout (DRO)	SDS6-3VA
Linear scale for axis X	670-1020mm
Linear scale for axis Y	370-570mm
Rack for DRO	L400
Protection cover for X scale	Type C
Protection cover for Y scale	Type D
Bracket for scales	T-bracket (1 set)
Others	Cable / Screws / Manual

Functions for milling machine:

Midsplit: Parts that are symmetrically divided or balanced.
Simple "R": A basic calculation for a radius or rounded edge.
The precise positioning of holes along angled lines is known as "oblique line hole positioning."
PCD Circle Equally Dividing: Pitch Circle Diameter is used to determine how evenly points are spaced around a circle.
Machining or finishing angled edges or surfaces is known as bevel processing.

Detail Information:

Lathe Machine Three-Axis DRO Kit SINO SDS6-3V Digital Readout System With Linear Scale TTL Signal Output

Pin Description:

Lathe Machine Three-Axis DRO Kit SINO SDS6-3V Digital Readout System With Linear Scale TTL Signal Output

All linear scales were tested before delivery. Here is a sample of a scale's test report.

Lathe Machine Three-Axis DRO Kit SINO SDS6-3V Digital Readout System With Linear Scale TTL Signal Output
